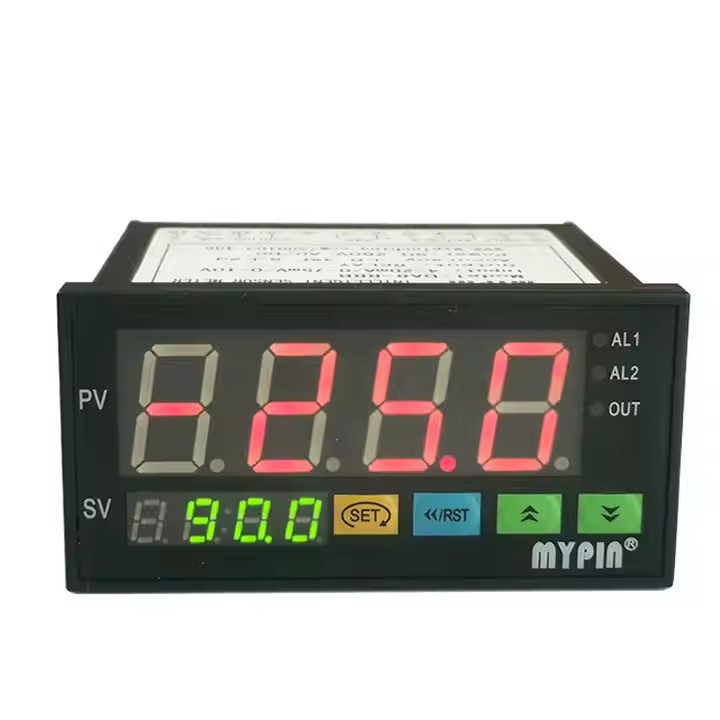

DA8-NB Indicator Mypin / Universal Indicator Size : 96x48x80mm.

- Power Supply : 90-260V AC/DC Power Consumption, 5A or 18-30V AV/DC
- Dimensions : Main : 96x48x80mm.  Holing : (45.5+0.5)H x (92.5+0.5)W x 80mmL
- Applications : Work with various sensor/Transmitter
- Accuacy : +-0.3%F.S+-2d (25C +-5C)
- Sampling speed : >4Times / sec
- Measure Range : -1999-9999
- Display : Bright LED display, 20mm. height(digit)
- Current Output : 4-20mA load <= 600MOhm   0-10V load > 10K
- Withstand Strenght : AC 1500V  1min (between terminal and outshell)
- Insulation Resistance : >=100MOhm (DC 500V between terminal and outshell)
- Signal Input : factotry setting : mA : 4-20mA V : 0-10V,  mV : 0-75mV, RTD : Pt100, TC : K J E S B R T
other input : 0-1KOhm, 0-300VDC etc.
- Weight : about 350g.
